FORGING THE FUTURE
WE ARE THE LEADING MANUFACTURERS IN INDIA OF FORGED AND FINISHED MACHINED (READY TO USE) PRODUCTS.
Our Forging shop boasts of one of the largest Forging Press in India with a capacity 5000 T
Besides this, our forging shop is also equipped with

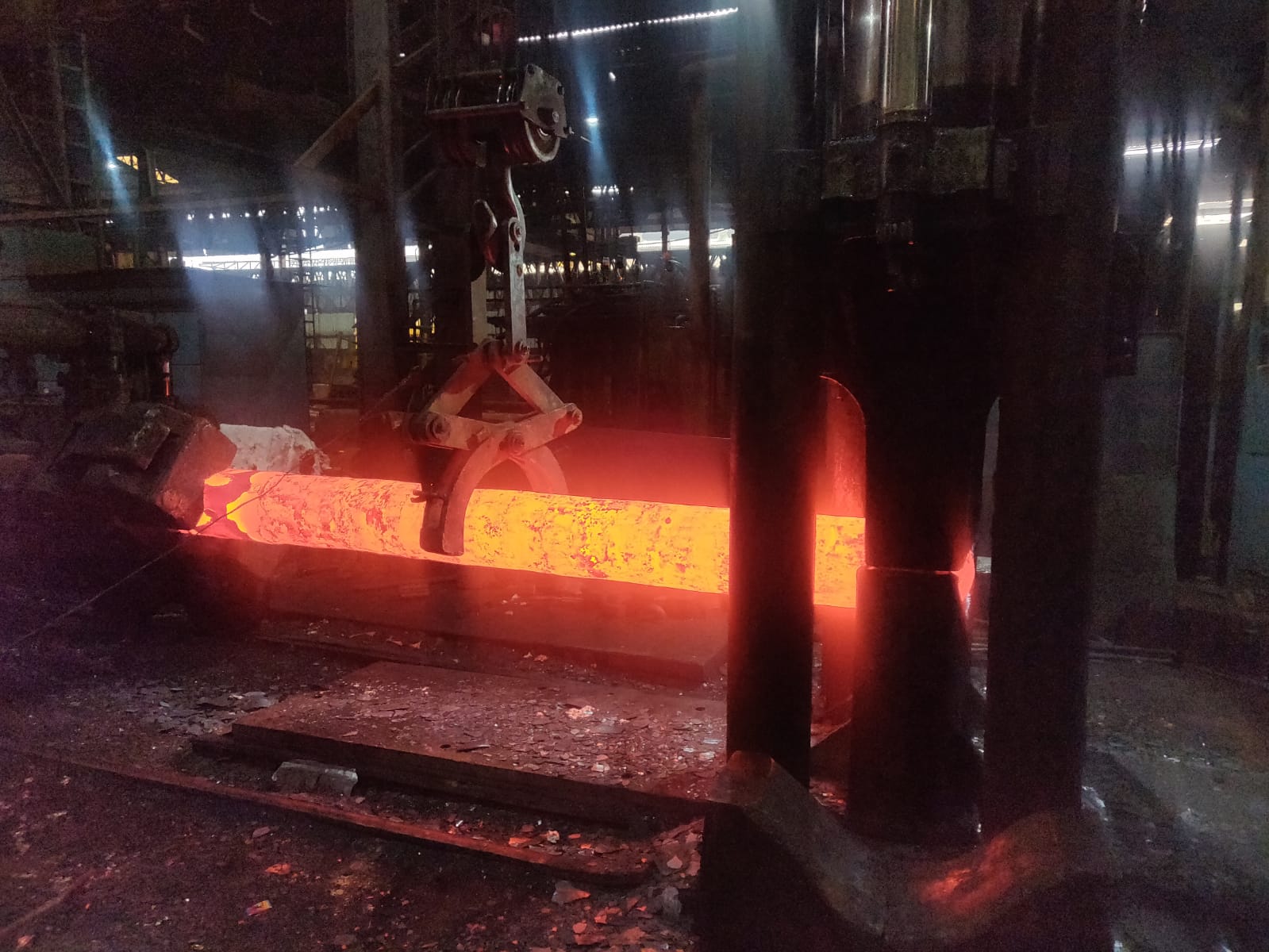

FORGING SHOP
| S. No. | DESCRIPTION | MAKE |
QTY. |
| 1. | Hydraulic Forging Press of 5000 Ton with Manupulator 30 Ton Meter | General(England) |
01 |
| 2. | Hydraulic Forging Press of 1500 Ton with Manupulator 10 Ton Meter | General (England) |
01 |
FURNACE
| S. No. | DESCRIPTION |
QTY. |
| 1. | Gas Fired Bogie Type Furnace Upto 1400ºC – Size 2.5 x 2.5 x 8 mtr. With Multi -zones Temperature Measurements. |
01 |
| 2. | Gas Fired Bogie Type Furnace Upto 1400ºC – Size 2.5 x 2.5 x 6.5mtr. With Multi-zone Temperature Measurements. |
01 |
| 3. | Gas Fired Box Type Furnace Upto 1400ºC – Size 2.5 x 2.5 x 5mtr. With Multi-zone Temperature Measurements. |
01 |

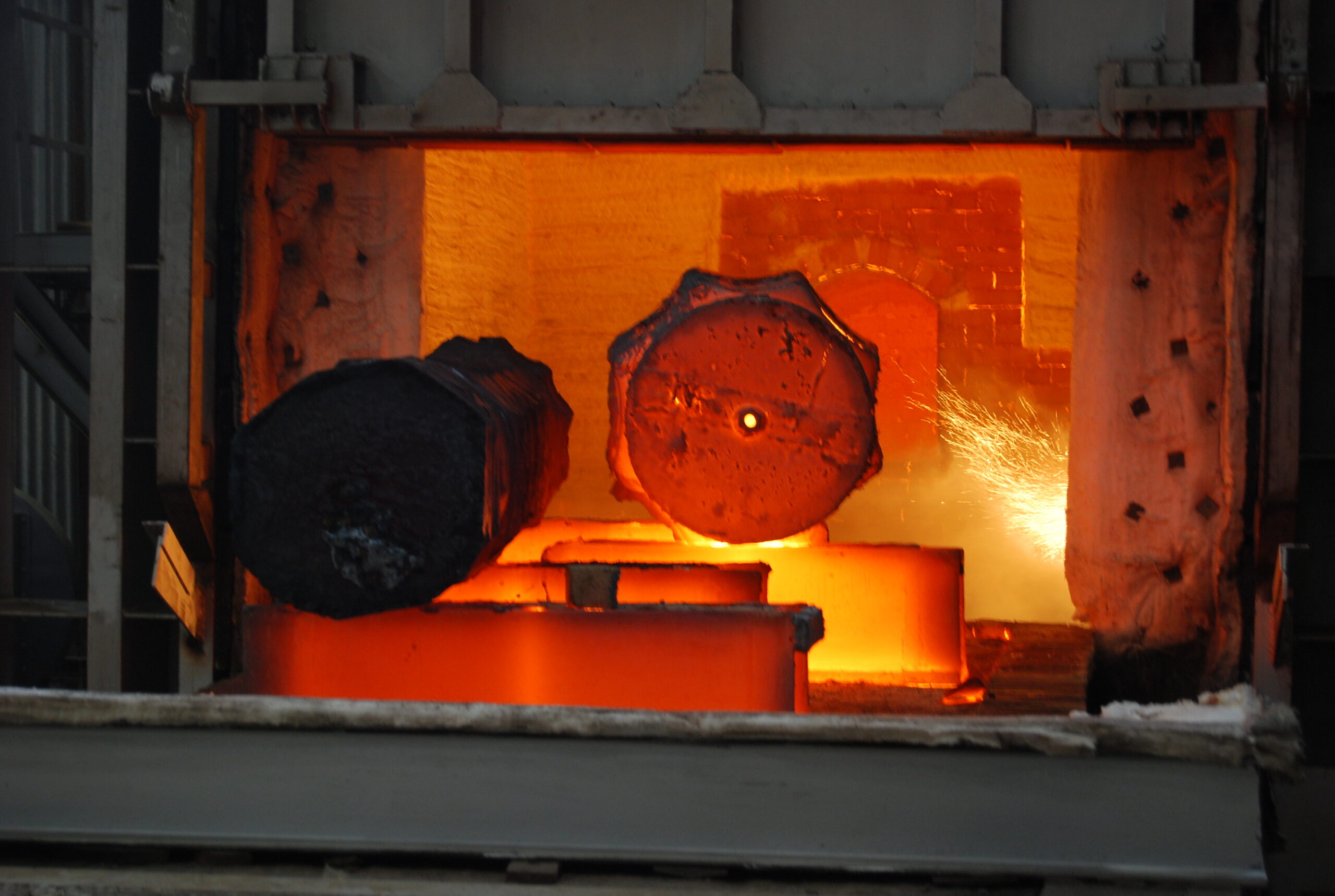

HEAT TREATMENT SHOP
| S. No. | DESCRIPTION | CAPACITY | QTY. |
| 1. | Gas Fired Bogie Type Furnace Upto 1200ºC Size 4 x 2.5 x 9 mtr. With Multi-zone Temperature Measurements | 50 Tons | 01 |
| 2. | Gas Fired Bogie Type Furnace Upto 1200ºC – Size 2 x 2 x 7 Mtr. / 14 Mtr. With Multi-zone Temperature Measurements | —- | 01 |

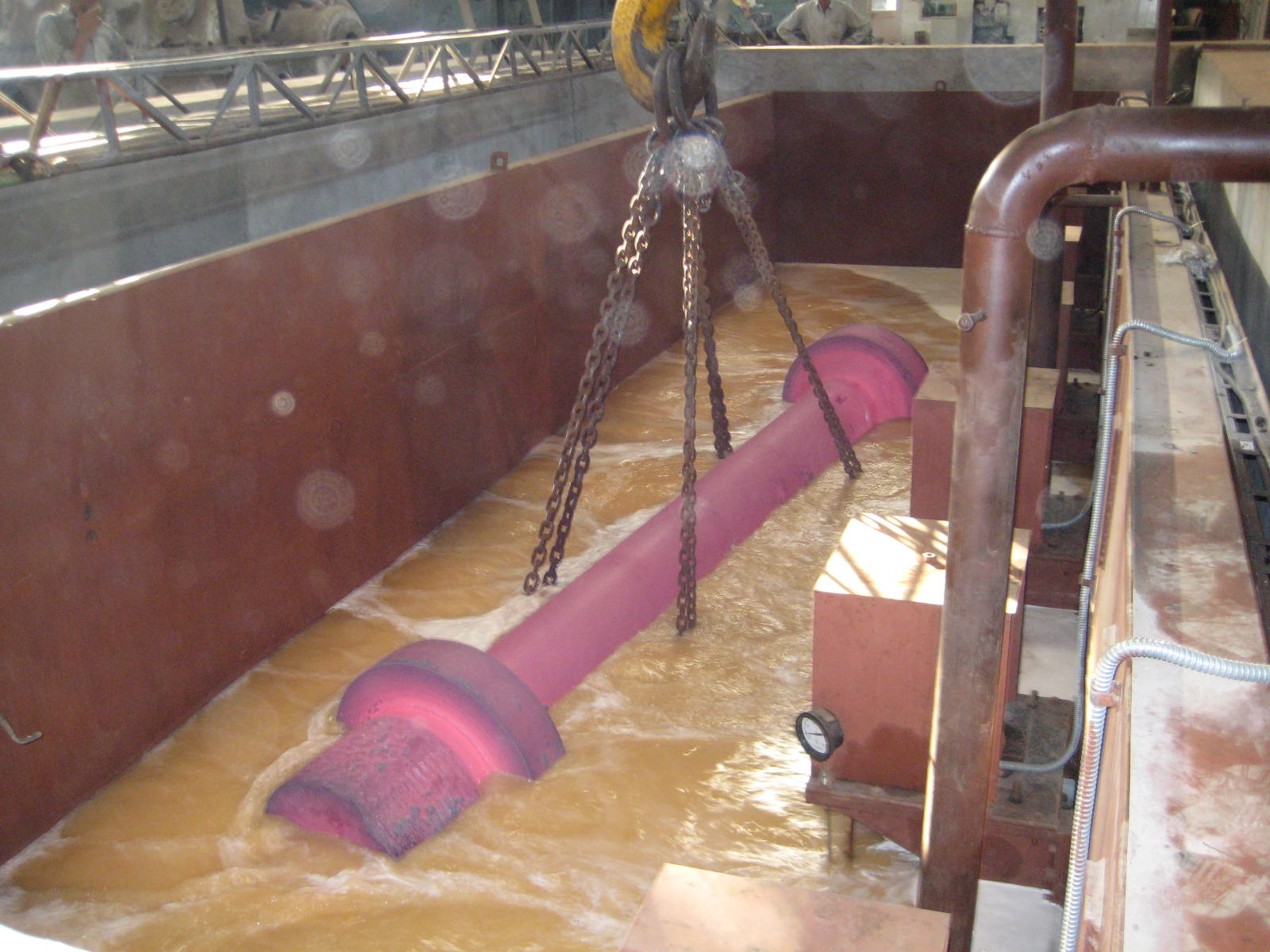

| 3. | Polymer Quenching Tank (2.5 x 3.5 x 9 Mtr.) | —- | 01 |
| 4. | Oil Quenching Tank (2.5 x 3.5 x 9 Mtr.) | —- | 01 |
THE MACHINE SHOP
Skilled machinists with expertise and experience complementing our machine shops provide the quality in the specialized products our Customers look for. Our machine shop contains These, along with other conventional machines, cylindrical grinding machines, complete our exclusive facility of infrastructure. We can machine and manufacture any shaft and other forgings of any design, size and specification including custom forging with this strength and facility.
PROOF MACHINING FACILITY
| VERTICAL BORING MACHINES | ||||||||
| S. No. | DESCRIPTION | MAKE | SIZE/CAPACITY | Qty | ||||
| (A) |
Vertical Boring Machine (With Hydro Copying Attachment) |
Richards (England) |
Up to Dia – 5000 mm Up to Height – 3000 mm |
5 Nos. | ||||
| LATH MACHINES: – | ||||||||
| 1. | Centre Lathe |
Max. Swing Ф – 1200 mm Between Centers – 10000 mm |
25 Nos. | |||||
FINISH MACHINING FACILITY
| CNC : – | ||||
| S. No. | DESCRIPTION | SIZE/CAPACITY | Qty | |
| 1 | CNC Lathe |
Ф 1200 mm Length 10000mm |
20 Nos. | |
| 2 | CNC VTL |
Chuck Ф2000mm, Swing Ф2500mm Height 1500mm |
01 No. | |
| 3 | HMC |
X Axis 4000mm, Y Axis 1500mm Z Axis 1500mm , Rotary 1500mm |
08 Nos. | |
| 4 | VMC |
X Axis 4500mm, Y Axis 1780mm Z Axis 1400mm, A Axis 1900 C Axis 4000 |
02 Nos. | |
| 5 |

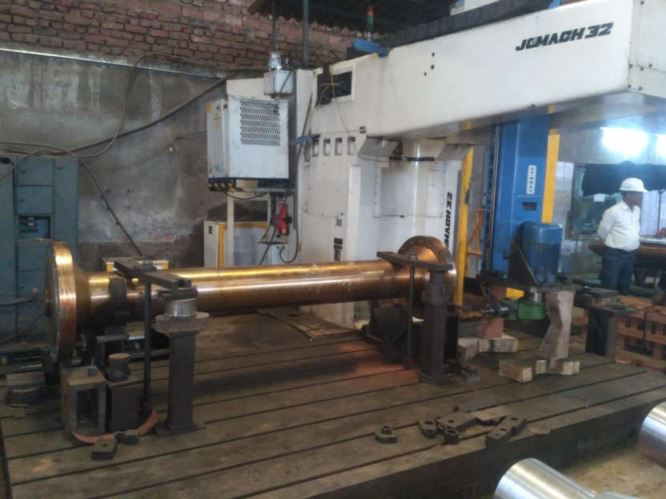

Horizontal Boring Machine (Floor Type)
|
Spindle Dia–160mm C.T–1500 mm V.T–2000 mm Floor Plate Size – 2000 mm X 2000 mm |
02Nos. | |
| 6 | Cylindrical Grinder |
Max Dia – 1000 mm Max Length 5000mm |
07 Nos. | |
MILLING & DRILLING MACHINES
| (A) | RaФ l Drilling Machine |
HMT (R.M.- 65) |
Swing Arm – 2000 mm | 2 Nos. |
PLANO MILLER
| (A) | Plano Miller | TOS |
Width 1200mm Length 4000mm Height 1200mm |
02 No. |
MATERIAL HANDLING FACILITIES
| S. No. | DESCRIPTION | CAPACITY | QTY. |
| 1. | E.O.T Crane | Max 50 Tons. / 5 Tons. | 08 Nos. |
